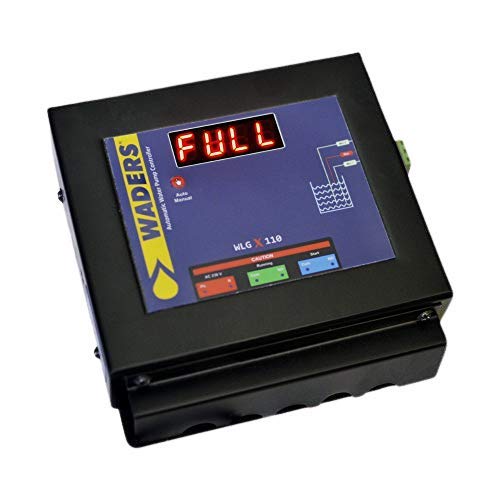

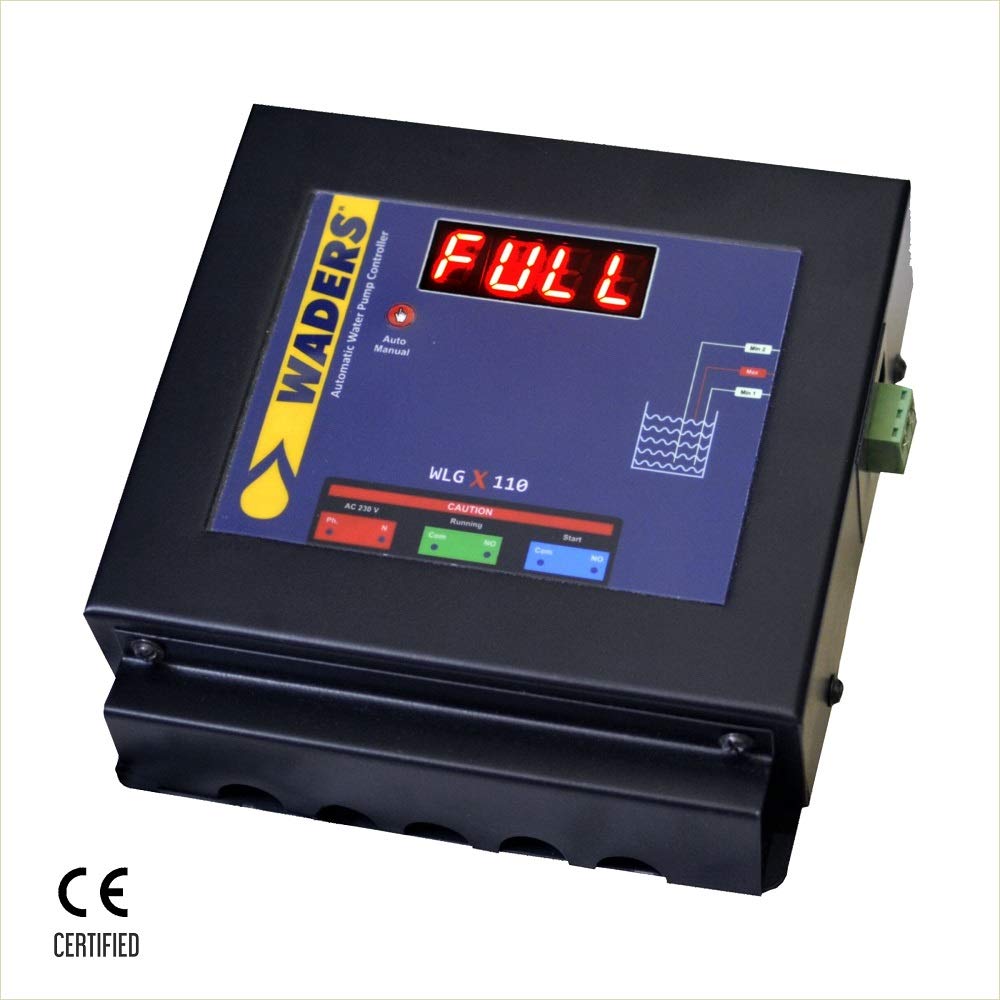

Waders Fully Digital Automatic Water Pump Controller is ideal choice for your home and Industry. It continuously monitors the water level of the overhead tank and/or ground tank. The Automatic Pump Controller controls the water pumps and turns it ON and OFF with respect to the level in the water tanks. This auto-switching feature Saves Manpower, Electricity, Water and Money. Hence, there is no need to operate your pump manually. Waders WLG-110 turns on, the pump, when the level of water in the overhead tank goes below LOW level and turns off the pump, when the water reaches the HIGH level. Thus there is no wastage of water and can save electricity bill and water charges.
Key Features
- The primary function of the system is to make the user free of all his daily water filling requirements. It will start & stop the water pump automatically.
- This Model is Suitable for Single Water Tank, while other Models are also Available to Monitor MULTIPLE WATER TANKS
- It monitors minimum & maximum levels in the tank. The pump is switched ON, when water level goes below minimum level. And pump is switched OFF, when tank gets full. So that, there is no chance of over flowing.
- EXCLUSIVE MODEL FOR SINGLE PHASE SUBMERSIBLE PUMP IS ALSO AVAILABLE.
- One Year Replacement Guarantee
Features at Glance
- The foremost purpose of the system is to make the user free of all his daily water filling requirements.
- All the operational states are displayed digitally through 7 segment display.
- Easy to control auto and manual mode.
- It monitors low and high level in the tank. The pump is switched ON, when water level goes below low level. And pump is switched OFF, when tank gets full. So that, there is no chance of dry running or over flowing.
- It can also be used in dual tank systems, when it is required to monitor the ground tank as well as the over head tank.
- It can also be used to remove water from the storage tanks.
- Models available from any single or three phase pump.
EXCLUSIVE MODEL FOR SINGLE PHASE SUBMERSIBLE PUMP ALSO AVAILABLE.
- With the help of two sensors, it keeps an eye on the inlet water supply as well as over head tank.
- As soon as it senses water at the inlet, pump is switched ON. So the user do not have to worry about the arrival of the water supply.
- So the whole process is completely automatic, Waders Automatic Water Level Controller helps in saving water and electricity, as well as it reduces the trouble of daily water filling process.
Technical Specifications
Display Indicates Various Parameters i.e. FULL, Pump ON, DRY etc.
Operating Voltage ±220 VAC 10%
Load 20 amps max. load at 220 VAC/440 VAC
Dimensions Base » 70 X 120 mm., Height » 130 mm.
Pushbutton Auto/Manual, and ON/OFF
